Product Overview

Designed for movement in the real world

BEYOND 01 is Outer Motion's first wearable product that measures outdoor walking and running biomechanics. Users simply click the sensors on top of their shoelaces in seconds and start their activity — no wires, no base station, no expert required.

  • Clips directly onto shoelace crosses — no modification to shoes
  • Operate like a smartwatch - simply click the 'start' button to start recording
  • Standalone recording — no smartphone, base station, or Wi-Fi required during use
  • Automatic data upload over Wi-Fi when placed on charge

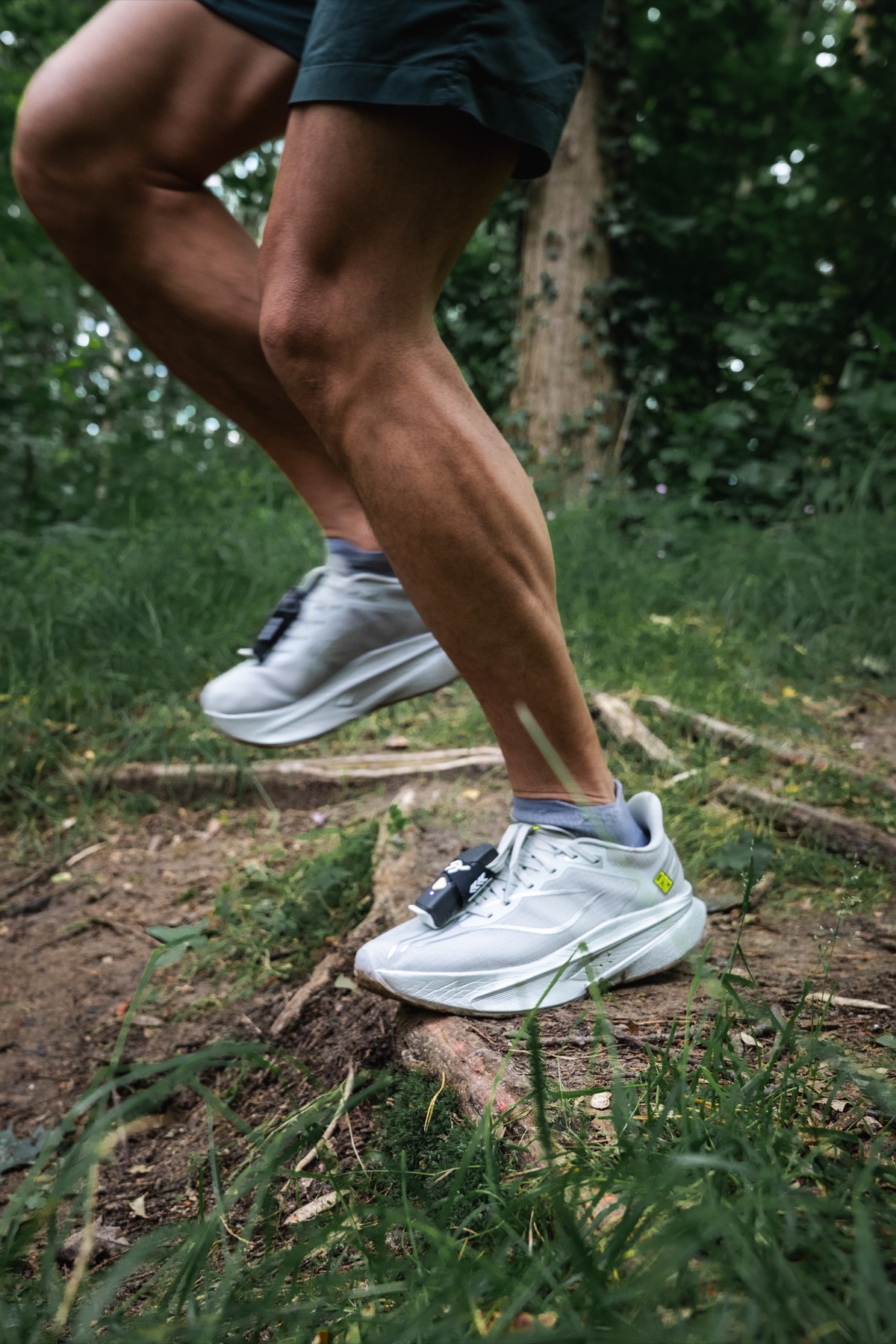

Runner wearing BEYOND 01 sensors
30 s
Calibration-free setup
Ready in 30 seconds
35 g
Per sensor weight*
Below running-shoe weight variation
> 2 h
Per charge
Covers most sport sessions
30 Hz
Full-body 3D kinematics
Lab-grade output, outdoors
IMU
Built-in inertial sensors
Fused with optical capture
8 h
Local on-device storage
Collect all day, upload overnight
Range — Auto Wi-Fi upload
Fully remote long-term data collection

* Below the weight variation among advanced running shoes (Rodrigo-Carranza et al, 2020).

Technical Specifications

Built for rigorous research

Product nameBEYOND 01
Sensors per set2 (left / right)
Sensor weight35 grams per sensor
Recording rate30 Hz
Battery life> 2 hours continuous recording
WirelessWi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
Frequency band2400–2500 MHz
Max RF output≤ 20 dBm EIRP
ChargingY-shape USB cable (5V, 1A minimum)
Upload time~2× recording duration (over Wi-Fi on charge)
Water resistanceSmall to medium rain — cannot be submerged
Operating conditionsDaylight outdoor use
BEYOND 01 system layout diagram
Get Started

Ready to take motion capture beyond the lab?

Contact us to discuss your research protocol, request a demo, or find the right pricing tier for your institution.
